TK-13G Backflow Test Kit | Comparable to Watts TK-9A Backflow Test Gauge

$599.00

One Year Warranty, Aluminum Case, & Current Calibration Certificate

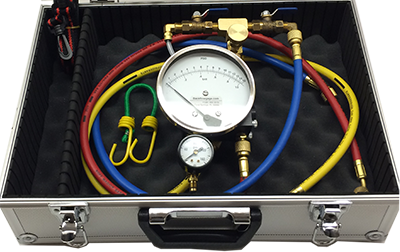

TK-13G Backflow Test Kit is a three value, compact portable testing device made for testing all Reduced Pressure Zone Backflow Prevention Assemblies, Double Check and PVB Valve Assemblies. TK-13G model includes a Zero to 160 PSI gage.

Category: SKU: TK-13G Tags:

Description

TK-13G Backflow Test Kit is a three value, compact portable testing device made for testing all Reduced Pressure Zone Backflow Prevention Assemblies, Double Check and PVB Valve Assemblies. TK-13G model includes a Zero to 160 PSI gage. The TK-13 is easily connected to any RPZ device enabling accurate testing of zone differential pressure, relief valve opening differential, fouled check valves or similar problems that visual inspections cannot locate. The unit is supplied with a rugged lightweight aluminum carrying case with key lock for easy handling and accessibility. Comparable to Watts TK-9A Backflow Test Gauge. Includes an additional 0-160 psi gage to measure system pressure (Model TK-13G).

SPECIFICATIONS:

  • 3 Valve – (2) ball valves and (1) needle valve.
  • Maximum working pressure – 175 psi.
  • Made of brass and aluminum not plastic
  • Maximum working temperature – 210°F.
  • Gage – 4.5″ diameter face dual scale
  • 0 -15 psid, 0-1 BAR, ± .2 psi accuracy at 15,10,5,2 & 1 on descending readings.
  • Hoses – (3) 3’ female threaded swivel couplings
  • Adaptors –
  • (3) 1/4″ threaded coupling adaptors
  • (3) 1/2″ x 1/4″ bushings
  • (3) 3/4″ x 1/4″ bushings
  • (1) 1/2” roll teflon tape
  • (1) Bunge chord
  • (1) 46″ shoulder strap
  • (1) Moisture resistant instruction guide.
  • (1) Calibration Certificate
  • (1) Case – light weight aluminum with keyed lock and foam inserts.

Limited One Year Warranty

Additional information

Weight 13 lbs
Dimensions 18 × 18 × 7 in

Warranty

Limited Warranty

Backflowgage.com warrants each product to be free from defects in material and workmanship under normal usage for a period of one year from the date of original shipment. In the event of such defects within the warranty period, the Company will, at its option, replace or recondition the product without charge. This shall constitute the sale and exclusive remedy for breach of warranty, and Backflowgage.com shall not be responsible for any incidental, special or consequential damages, including without limitation, lost profits or the cost of repairing or replacing other property which is damaged if the product does not work properly, other costs resulting from labor charges, delays, vandalism, negligence, fouling caused by foreign material,damage from adverse water conditions, chemical, or any other circumstances over which the Company has no control.

The warrant shall not be invalidated by any abuse, misuse, misapplication or improper installation of the product. THIS WARRANT IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Any implied warranties that are imposed by law are limited in duration to one year. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. Therefore the above limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. You should consult applicable laws to determine your rights.
